The Bolton Technical Blade is a 5G OTR (Over the Road) cellular vehicle antenna for all types of vehicles very similar to the WeBoost Trucker Antennas.
The Bolton Technical Beacon antenna is a panel antenna commonly used in a window or on a pole mount.
Both antennas offer multiple mounting options, these are both versatile antennas that mount virtually anywhere!

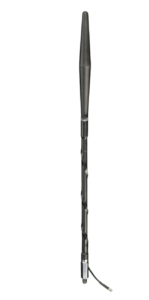

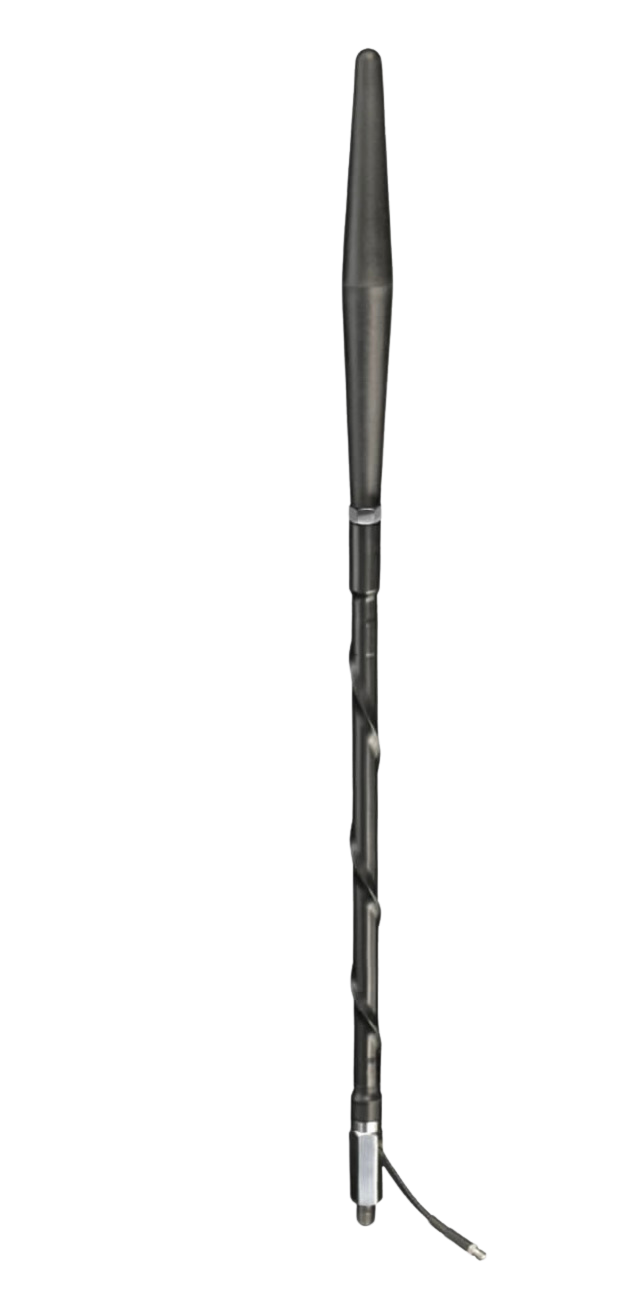

The Blade
Specifications
- Model: BT151885
- Form Factor: Mast
- Direction: Omnidirectional
- # of Antenna Elements: Single
- Frequency Range: 600 MHz - 3750 MHz
- Impedance: 50 ohms
- Cable Type & Length: LMR 200, 1.5" to termination
- Connector: RG-58 SMA Male/FME Female
- Dimensions (H x L x W): 23.5 inches long
- Weight: 2 pounds
- Mounting Options: Surface, wall, pole, or deck
- Outdoor Rated: Yes
- Frequency Range/Gain:
- 600 MHz -6.4 dBi
- 698-806 MHz 2.7 dBi
- 806-960 MHz 2.1 dBi
- 1710-1880 MHz 4.4 dBi
- 1850-1990 MHz 2.7 dBi
- 1910-2170 MHz 2.4 dBi
- 2300-2700 MHz 3.9 dBi
- 3600-3750 MHz 2.3 dBi
- Special Features/Notes:
- Retail Price: $99.99

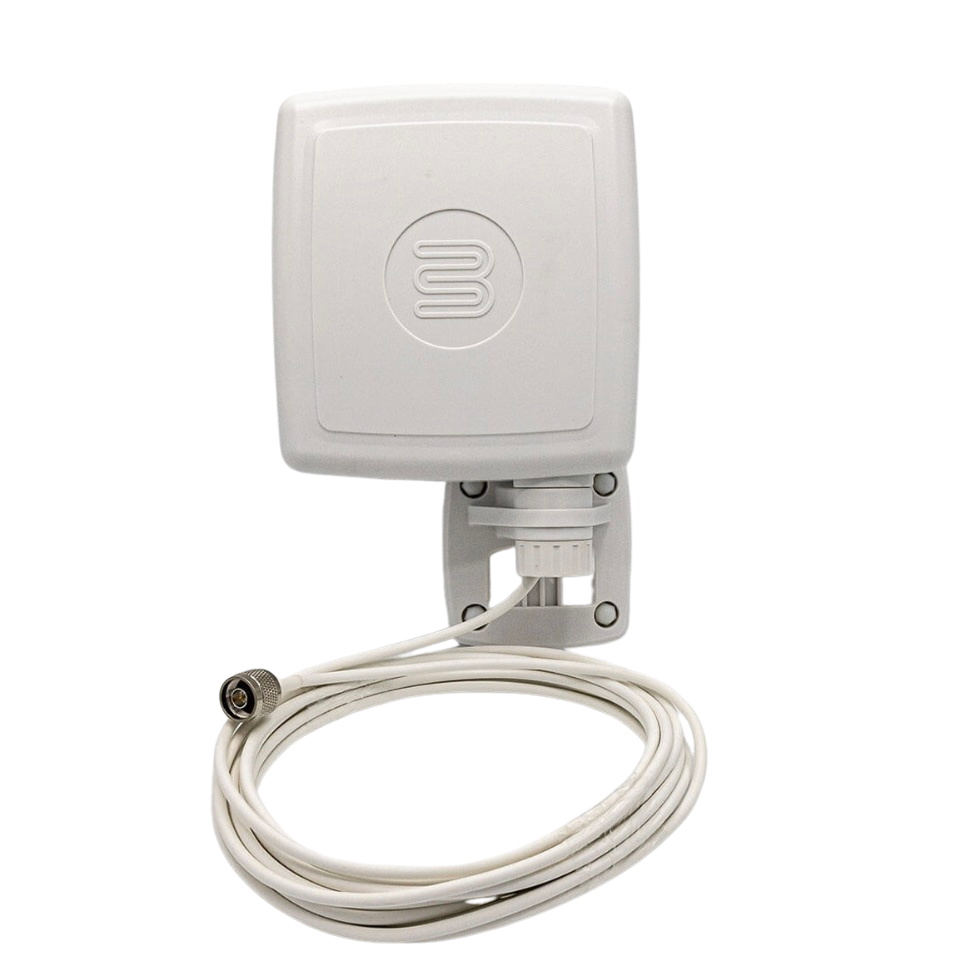

The Beacon
Specifications
- Model: BT684129, BT684205, BT684212
- Form Factor: Panel
- Direction: Directional
- # of Antenna Elements: Single
- Frequency Range: 617 MHz - 4000 MHz
- Impedance: 50 ohms
- Cable Type & Length: RG174, 6", 6 Feet or 20 feet
- Connector: N-Female
- Dimensions (H x L x W): 6.89 x 6.46 x 2.48 inches
- Weight: 1.76 pounds (with out mounting kit)
- Mounting Options: 4 suction mounts, Pole mounting bracket
- Outdoor Rated: Yes
- Frequency Range/Gain:
- 698-960 MHz - 4.5 dBi
- 806-960 MHz - 6 dBi
- 1710-2700 MHz - 7.5 dBi
- 3300-4000 MHz - 6 dBi
- Special Features/Notes:
- Retail Price: $99.99
