Peplink is a mobile connectivity company best known for its line of Pepwave mobile routers, but Peplink also offers a variety of antennas that are certified for use with its cellular integrated router lineup.

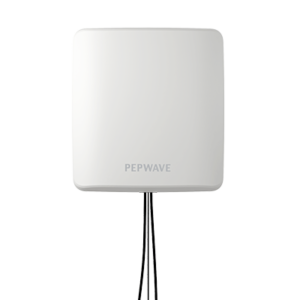

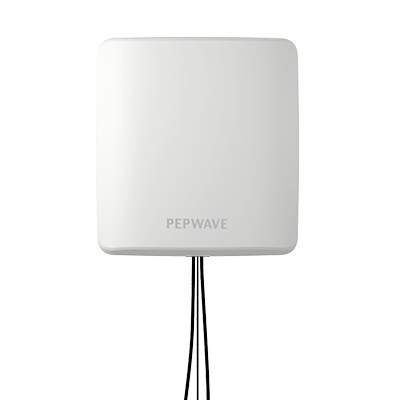

The Pepwave IoT 20G antenna is a directional, high gain antenna with support for 5G and Band 71. Although the IoT 20G is primarily designed for fixed installations, it can be used in a mobile setup.
Specifications
- Model: ANT-IOT-20G
- Form Factor: Panel
- Direction: Directional
- # of Antenna Elements: 2x2 MIMO
- Frequency Range: 617-6000MHz
- Impedance: 50 ohm
- Cable Type & Length:
- Cellular: LMR-200, 2 or 16 ft
- GPS: RG-174
- Connector:
- ANT-IOT-20G-N-W-2: N (2ft of cable)
- ANT-IOT-20G-S-W-16: SMA (16ft of cable)
- Dimensions (H x L x W): 12.81 x 11.86 x 3.03 inches
- Weight: Not specified
- Mounting Options: Pole or wall
- Outdoor Rated: Yes
- Frequency Range/Gain:
- 617-960MHz: 6.4dBi
- 1710-2700MHz: 10.2dBi
- 3400-4200MHz: 7.9dBi
- 4900-6000MHz: 7.0dBi
- Special Features/Notes: Not Specified
- Retail Price: $349
News, Videos, & Status
- We do not have this unit in for testing.
Peplink News Stories
Alternatives to Consider
For other popular cellular antennas on the market we are tracking - here are our featured options:
This Review Contains Additional Member Exclusive Content!
We are Honored to be Member Funded! No ads, no sponsors, no selling (but may contain affiliate links)
Our members fund our in-depth independent reviews.
This entry may contain additional member exclusive content such as testing notes, field testing data, user interface tours, comparisons to alternatives, analysis, tips, videos and discounts.
Members also get interactive guidance, alerts, classroom and more.
Are you a member? Please log in above to access your member exclusive content!
Member Exclusive Content Below
- Thoughts & Analysis - Favorite Features & Potential Downsides
Purchasing Options
Purchasing Links & Disclaimer
We don't sell stuff, we are primarily member funded. Some links below may be affiliate links (see our disclaimer), which also helps fund MIRC.
The vendors displayed below provide larger discounts to our MIAs that we have negotiated instead of displaying affiliate links while they are logged in.
MIA Discounts - Learn & Save!
Our Mobile Internet Aficionados (MIA) get special discounts from the below vendors. Members please check for discount codes before ordering. With savings up to 11% off, you could save more than your membership cost!
Amazon (affiliate link)
Cellular antennas can be a vital part of your signal enhancing strategy to get a better signal, and thus better cellular data performance. They come in many shapes, sizes and varieties.
They can be used directly connected to your mobile hotspots or cellular embedded routers, or they might connect to your cellular booster. They come in omni-directional vs directional, single vs MIMO, and might support different frequency bands. They come in combination antennas with Wi-Fi and GPS.
But most importantly, is your installation options on your RV or boat.
So before choosing an antenna, be sure to understand all of these variables - and keep in mind that there likely isn't a single 'one size fits all' solution here. You may need to make compromises, or even have speciality antennas for challenging signal areas.
