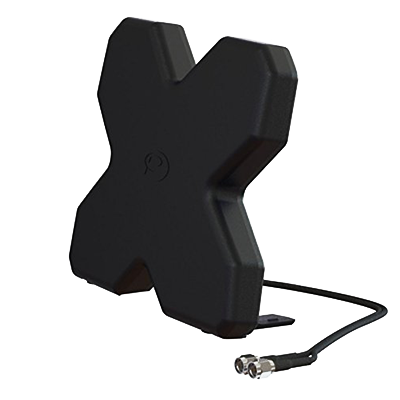

Panorama's MIMO desktop antenna comes in a number of different versions and the two versions most useful are the:
- TS-9 connector for use with cellular mobile hotspot devices
- SMA connector for use with routers
You can mount this antenna by sitting it on a desk or other flat surface, or with the included suction cups to a window most closely facing the cellular tower you're connected to, or by using the included clips to attach to the screen of a laptop. No tricky roof installation needed. It's portable and rated for indoor use.
This antenna was slightly revised with support for higher frequencies in 2020. The updated version is not full Sub-6 5G and still does not offer 600 MHz Band 71, but a few more bands are covered.
The latest DMM & DMM 4 versions as of 2023 have been updated to support 600 - 6000 MHz supporting all of the Sub-6 Ghz frequencies with options for 2x2 & 4x4 MIMO.
Specifications
DMM-7-38
- Models:
- DMM-7-38-2SP
- DMM-7-38-2TS9
- DMM-7-27-2SP
- DMM-7-27-2TS9 (no longer available - but our review is based on these very similar predecessors)
- Form Factor: Panel
- Direction: Omnidirectional
- # of Antenna Elements: 2x2 MIMO
- Frequency Range:
- DMM-7-38-2: 698-960/1710-3800MHz
- DMM-7-27-2 (now retired): 698-960 / 1710-2700 MHz
- Impendance: 50 ohms
- Cable Type & Length: RG174, 6.5'
- Connectors:
- 7-27-2TS9: 2x TS-9 connectors, SMA adapters included (the model for hotspots)
- 7-27-2SP: SMA connectors (no adapters included)
- Dimensions (H x L x W): 7.27 x 6.94 inches
- Weight: 7 ounces
- Mounting Options: Includes clips & suction cups
- Outdoor Rated: No
- Frequency Range/Gain:
- 698-960MHz - 2.5dBi
- 1710-2170MHz - 4dBi
- 2.2-2.7GHz - 3dBi
- Special Features/Notes: Not Specified
- Retail Price: $42.00
DMM-6-60
- Models:
- DMM-6-60-2SP
- DMM-6-60-05SP
- DMM-6-60-2TS9
- Form Factor: Panel
- Direction: Omnidirectional
- # of Antenna Elements: 2x2 MIMO
- Frequency Range: 617-960/1710-2600/3400-6000MHz
- Impendance: 50 ohms
- Cable Type & Length:
- DMM-6-60-2SP: RG174, 2 x 6.5'
- DMM-6-60-05SP: RG174, 2 x 1.5'
- DMM-6-60-2TS9: RG174, 2 x 6.5'
- Connectors:
- DMM-6-60-2SP: 2 x SMA/Male
- DMM-6-60-05SP: 2 x SMA Plugs
- DMM-6-60-2TS9: 2 x TS9
- Dimensions (H x L x W): 7.28 x 6.9 inches
- Weight: 9 ounces
- Mounting Options: Desk, screw, or window
- Outdoor Rated: No
- Frequency Range/Gain:
- 698-960MHz - 2dBi
- 1710-2600MHz - 3dBi
- 3.4-6.0GHz - 5dBi
- Special Features/Notes: Not Specified
- Retail Price: $58.11 (DMM-6-60-2SP)
DMM4-6-60
- Models:
- DMM4-6-60-2SP
- DMM4-6-60-2FDJ
- DMM4-6-60-2TS9
- Form Factor: Panel
- Direction: Omnidirectional
- # of Antenna Elements: 4x4 MIMO
- Frequency Range: 617-960/1427-2700/2700-6000MHz
- Impendance: 50 ohms
- Cable Type & Length:
- DMM4-6-60-2SP: RG174, 2 x 6.5'
- DMM4-6-60-2FDJ: RG174, 2 x 6.5'
- DMM4-6-60-2TS9: RG174, 2 x 6.5'
- Connectors:
- DMM4-6-60-2SP: 2 x SMA/Male
- DMM4-6-60-2FDJ: 2 x Fakra D Jack
- DMM4-6-60-2TS9: 2 x TS9
- Dimensions (H x L x W): 7.28 x 6.9 inches
- Weight: 9 ounces
- Mounting Options: Desk, screw, or window
- Outdoor Rated: No
- Frequency Range/Gain:
- 617-960MHz - 2dBi
- 1427-2700MHz - 4dBi
- 2.7-6.0GHz - 5dBi
- Special Features/Notes: Not Specified
- Retail Price: $94-$120
News, Videos, & Status
We purchased the older TS-9 version of this antenna (the 698-960 / 1710-2700 MHz band version) to test against our top rated Netgear MIMO antenna of similar specs. We received the 4 x 4 MIMO antenna for testing from Panorama. Our field testing results can be found here for our members who want to follow along:
- 4 X 4 MIMO Desk Antenna by Panorama (Cellular Antennas)
- Cellular Signal Field Testing – SureCall Fusion2Go 3.0 | weBoost 4G-X OTR | weBoost 4G-M | HiBoost OTR | MIMO Antennas (Late 2018)
- Cellular Signal Field Testing – SureCall Fusion2Go 3.0 | weBoost Connect RV 65 | HiBoost OTR | MIMO Antennas (2nd Quarter 2018)
- Cellular Signal & Embedded Router Field Testing – IBR900 | MAX-BR1 | Drive Sleek | MIMO Antennas (1st Quarter 2018)
Alternatives to Consider
For other popular cellular antennas on the market we are tracking - here are our featured options:
This Review Contains Additional Member Exclusive Content!
We are Honored to be Member Funded! No ads, no sponsors, no selling (but may contain affiliate links)
Our members fund our in-depth independent reviews.
This entry may contain additional member exclusive content such as testing notes, field testing data, user interface tours, comparisons to alternatives, analysis, tips, videos and discounts.
Members also get interactive guidance, alerts, classroom and more.
Are you a member? Please log in above to access your member exclusive content!
Member Exclusive Content Below
- Thoughts & Analysis - Favorite Features and Potential Downsides
- Deep Dive
- Hardware Notes
- Testing Notes
- Summary
Purchasing Options
Purchasing Links & Disclaimer
We don't sell stuff, we are primarily member funded. Some links below may be affiliate links (see our disclaimer), which also helps fund MIRC.
The vendors displayed below provide larger discounts to our MIAs that we have negotiated instead of displaying affiliate links while they are logged in.
MIA Discounts - Learn & Save!
Our Mobile Internet Aficionados (MIA) get special discounts from the below vendors. Members please check for discount codes before ordering. With savings up to 11% off, you could save more than your membership cost!
Amazon (affiliate link): DMM-7-38-2SP SMA Version
5G Store: DMM-6-60-2SP
CDW: DMM4-6-60-2SP
Westward Sales: DMM4-6-60-2SP
Cellular antennas can be a vital part of your signal enhancing strategy to get a better signal, and thus better cellular data performance. They come in many shapes, sizes and varieties.
They can be used directly connected to your mobile hotspots or cellular embedded routers, or they might connect to your cellular booster. They come in omni-directional vs directional, single vs MIMO, and might support different frequency bands. They come in combination antennas with Wi-Fi and GPS.
But most importantly, is your installation options on your RV or boat.
So before choosing an antenna, be sure to understand all of these variables - and keep in mind that there likely isn't a single 'one size fits all' solution here. You may need to make compromises, or even have speciality antennas for challenging signal areas.
We recommend starting with our Guide to Selecting Antennas, and then moving on to our other guides addressing related topics:
