Review: Peplink AP One Series Access Points (Accessories)

The Peplink AP One series of access points are designed to work with Peplink routers to spread local Wi-Fi coverage over a larger area.

In a typical small business or enterprise deployment, you could have an access point in every room of an office - or on every floor of a building.

All the access points work together under control of the central router - allowing for seamless Wi-Fi roaming by connected devices as they move around.

On most RVs and smaller cruising boats, this sort of extended local Wi-Fi coverage is usually not needed.

But if you are struggling with Wi-Fi performance below decks, or at the far ends of a large fifth wheel - adding one or more AP One access points can work wonders.

And if you are using a Peplink router that lacks built-in Wi-Fi, or if you want to use your router's built in Wi-Fi radio exclusively for WiFi-as-WAN - you can also add a companion AP One to your router that is focused on hosting your indoor network.

There are many models in the AP One product line - most designed for different types of corporate installation challenges, including ceiling and in-wall mounts.

Models listed in bold are of most interest for nomadic installation, and are covered in more detail in this Gear Center entry:

• AP One AC Mini - Tiny POE powered Wi-Fi 5 (802.11ac) access point.
• AP One AX Lite - Small POE powered Wi-Fi 6 (802.11ax) access point.
• AP One AX - Larger enterprise-grade Wi-Fi 6 (802.11ax) access point.
• AP One Rugged - Industrial-grade performance Wi-Fi 5 (802.11ac) access point.
• AP One Enterprise - An advanced enterprise-grade Wi-Fi 5 (802.11ac) access point.
• AP Pro AC - An outdoor all-weather Wi-Fi 5 (802.11ac) access point.
• AP Pro AX - An outdoor all weather Wi-Fi 6 (802.11ax) access point with mesh capability.
• AP One Flex - An outdoor enterprise-grade Wi-Fi 5 (802.11ac) access point with a directional antenna.

Note: Access Points like this are intended to help host your local private Wi-Fi network, not to connect via WiFi-as-WAN to a distant public campground or marina network.

Overview

AP One Mini

Specifications

•

  Model: APO-AC-MINI

• Wi-Fi Standard: Wi-Fi 5 (802.11ac) - Simultaneous 2.4 GHz & 5 GHz
• Wi-Fi Notes: Wi-Fi 5 Wave 2 - MU-MIMO
• Max Theoretical Wi-Fi Speed: 300 Mbps (2.4 GHz), 866 Mbps (5 GHz)
• Claimed Wi-Fi Range: 400 feet
• Ethernet Port: 1x Gigabit (POE)
• Power: 12v DC (included) or Power-over-Ethernet (POE - not included)
• Antenna Type: Built-in omnidirectional, 2x2 MIMO
• Antenna Gain:
  • 2.4GHz: 3.2dBi
  • 5GHz: 5dBi
• Dimensions: 3.9" x 3.9" x 0.8"
• Price: $179

Peplink AP One Mini Spec Sheet

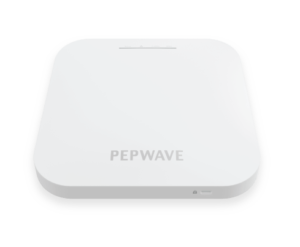

AP One AX Lite

Specifications

•

  Model: APO-AX-LITE

• Wi-Fi Standard: Wi-Fi 6 (802.11ax) - Simultaneous 2.4 GHz & 5 GHz
• Max Theoretical Wi-Fi Speed: 574 Mbps (2.4 GHz), 1200 Mbps (5 GHz)
• Claimed Wi-Fi Range: 400 feet
• Ethernet Port: 1x Gigabit (POE)
• Power: 12v DC or Power-over-Ethernet (POE). Power supply not included.
• Antenna Type: Built-in omnidirectional, 2x2 MIMO
• Antenna Gain:
  • 2.4GHz: 3.2dBi
  • 5GHz: 5dBi
• Dimensions: 5.9'' x 5.9'' x 1.3''
• Price: $299

AP One AX

Specifications

• Model: APO-AX
• Wi-Fi Standard: Wi-Fi 6 (802.11ax) - Simultaneous 2.4 GHz & 5 GHz
• Max Theoretical Wi-Fi Speed: 1148 Mbps (2.4 GHz), 2400 Mbps (5 GHz)
• Claimed Wi-Fi Range: Not specified
• Ethernet Port: 1x 2.5 Gigabit (POE)
• Power: 12v DC or Power-over-Ethernet (POE). Power supply not included.
• Antenna Type: Built-in omnidirectional, 4x4 MIMO
• Antenna Gain:
  • 2.4GHz: 2.7-5.0 dBi
  • 5GHz: 3.8-5.6 dBi
• Dimensions: 8.1'' x 8.1'' x 1.3''
• Price: $399

Peplink AP One AX Spec Sheet

AP One Rugged

Specifications

• Model: APO-AC-RUG
• Wi-Fi Standard: Wi-Fi 5 (802.11ac) - Simultaneous 2.4 GHz & 5 GHz
• Max Theoretical Wi-Fi Speed: 300 Mbps (2.4 GHz), 866 Mbps (5 GHz)
• Claimed Wi-Fi Range: 680 feet
• Ethernet Port: 3x GE
• Power: AC Input 100V – 240V / (Micro Fit Connector) DC Output 12V 2A, 30V 1A  / 802.3at PoE
• Antenna Type: External omnidirectional, 2x2 MIMO
• Antenna Gain:
  • 2.4GHz: 3dBi
  • 5GHz: 3dBi
• Antenna Connectors: 2x RP-SMA Wi-Fi Antenna connectors
• Dimensions: 4.8" x 4.2" x 1.4"
• Price: $299

Peplink AP One Rugged Spec Sheet

Explore Our Peplink Resource Collection

View our Peplink product line overview and articles - co-authored with our education & action partner at MobileMustHave (who offers advanced support, guidance and discounts to our members):

Setup Guidance

Peplink Guides

Router Lineup

Tech Support Forum

Peplink SIM Injector – Create a Library of Data Plans

Peplink VLANs: Defining Multiple Local Area Networks

Peplink and Starlink for RV & Boat Mobile Internet Reliable Solutions

Peplink SpeedFusion Connect for RVs & Boats (Bonding)

Peplink QoS – Quality of Service: User Groups & Bandwidth Limits

Achieving Mobile Internet Redundancy with a Peplink Router

Choosing Your Peplink Router for RV & Boat Travels

Choosing an RV or Boat Antenna for Your Peplink Router

Selecting Cellular Data Plans for Peplink & Other Routers

Peplink SpeedFusion VPN / PepVPN – Connecting Two Routers in Different Locations

Peplink Key Features – What Sets Their Routers Apart for RV & Boat Use?

Peplink Synergy Mode: Connecting Multiple Routers Together

Peplink Captive Portals & Guest Networks: Sharing Your Connection

News, Videos & Status

We have an AP One AC Mini provided as an evaluation unit by MobileMustHave - and have used it extensively paired with our MAX Transit Duo and Balance 20X routers. It "just works" - automatically extending our indoor Wi-Fi coverage well beyond what the router alone is capable of.

Here's a collaborative video we created with our friends at MobileMustHave explaining the role of an AP, and how to power them over 12v POE:

News Stories:

• Peplink Firmware 8.5 Released - Starlink Optimizations & Minor Updates Posted on: August 29, 2024
• Peplink Releases the MAX BR2 - A Low-Performance Dual-Modem Router Posted on: July 11, 2024
• The Basecamp 2.0 from MobileMustHave - Use OEM Winegard Air 360 Rooftop Antennas With Peplink Routers Posted on: May 21, 2024
• Peplink Offers B One 5G Router With 20GB of Multi-Carrier eSIM Data Included Posted on: May 17, 2024
• Peplink Introduces Dome Pro LR (Long Range) For Supercharged Marine Connectivity Posted on: April 12, 2024

This Review Contains Additional Member Exclusive Content!

We are Honored to be Member Funded! No ads, no sponsors, no selling (but may contain affiliate links)

Our members fund our in-depth independent reviews.

This entry may contain additional member exclusive content such as testing notes, field testing data, user interface tours, comparisons to alternatives, analysis, tips, videos and discounts.

Members also get interactive guidance, alerts, classroom and more.
