This Product Discontinued or Obsolete
While current owners of this device or plan may continue to find performance to be adequate for the foreseeable tech-future, we do not recommend upgrading to or purchasing it.

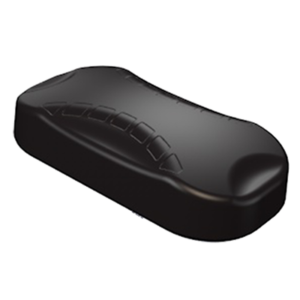

The MIMO-1 by Poynting is a roof-mounted housing that provides two WI-Fi antennas, two LTE cellular antennas, and GPS in one low profile unit. This style of antenna is a dome antenna with the cables routed through the base of the antenna. More information on installing these antennas can be found in the Antenna Installation - Low Profile Roof Mounts.
Two LTE/4G/3G antennas cover all cellular bands. Two dual-band Wi-Fi antennas provide both 2.4GHz and 5GHz extending capabilities.
There is also a fifth antenna providing an active GPS/GLONASS module operating down to -40 degrees.

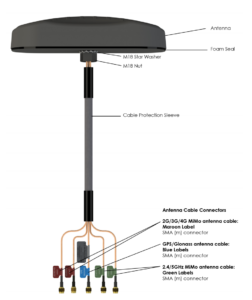

This is a rugged outdoor mount antenna system. It connects to devices via 5 separate (one for each antenna) SMA connectors.
Specifications
- Model: MIMO-1
- # of Antennas: 2x2 MIMO
- Direction: Omni-directional
- Frequency Range: 690 – 960MHz, 1710 – 2700MHz
- Impedance: 50 ohms
- Cable Type & Length: EF_316_D, 12'
- Connectors: SMA-Male
- Internal Ground Plane: Yes
- Dimensions: 10 x 5 x 2 in
- Weight: 1 lb, 6 oz
- Mounting: Pole or roof
- Outdoor Rated: Yes
- Frequency / Gain: 3dBi
- Retail Price: $199.99
News, Videos, & Status
We are not currently testing this product.
Alternatives to Consider
For other popular cellular antennas on the market we are tracking - here are our featured options:
This Review Contains Additional Member Exclusive Content!
We are Honored to be Member Funded! No ads, no sponsors, no selling (but may contain affiliate links)
Our members fund our in-depth independent reviews.
This entry may contain additional member exclusive content such as testing notes, field testing data, user interface tours, comparisons to alternatives, analysis, tips, videos and discounts.
Members also get interactive guidance, alerts, classroom and more.
Are you a member? Please log in above to access your member exclusive content!
Purchasing Options
Purchasing Links & Disclaimer
We don't sell stuff, we are primarily member funded. Some links below may be affiliate links (see our disclaimer), which also helps fund MIRC.
The vendors displayed below provide larger discounts to our MIAs that we have negotiated instead of displaying affiliate links while they are logged in.
MIA Discounts - Learn & Save!
Our Mobile Internet Aficionados (MIA) get special discounts from the below vendors. Members please check for discount codes before ordering. With savings up to 11% off, you could save more than your membership cost!
MobileMustHave (MIAs, check your Member Discounts)
Cellular antennas can be a vital part of your signal enhancing strategy to get a better signal, and thus better cellular data performance. They come in many shapes, sizes and varieties.
They can be used directly connected to your mobile hotspots or cellular embedded routers, or they might connect to your cellular booster. They come in omni-directional vs directional, single vs MIMO, and might support different frequency bands. They come in combination antennas with Wi-Fi and GPS.
But most importantly, is your installation options on your RV or boat.
So before choosing an antenna, be sure to understand all of these variables - and keep in mind that there likely isn't a single 'one size fits all' solution here. You may need to make compromises, or even have speciality antennas for challenging signal areas.
We recommend starting with our Guide to Selecting Antennas, and then moving on to our other guides addressing related topics:
