Taoglas is a UK-based global company that develops products - primarily antennas - for the IoT industry. The company makes thousands of antennas for a variety of purposes. Some of their products are of use for RVers cruisers and other nomads. Taoglas products have limited consumer distribution in the U.S. and are typically only available from a few specialty vendors.

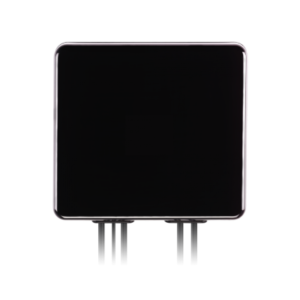

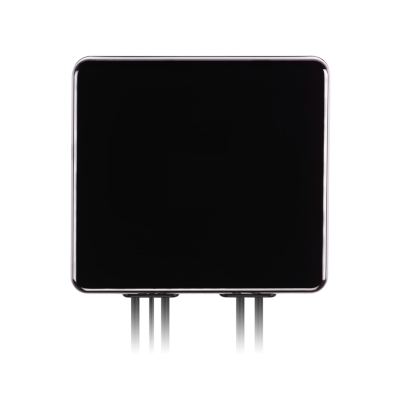

The Guardian line of combination antennas is an unusual design - a flat, adhesive-mount omnidirectional combination antenna that does not require a ground plane. This antenna series is designed for ultra-low profile installations, particularly for use inside vehicles without metal roofs or exterior roof and wall-mount applications.
Many variations of this antenna are available that have the following differences:
- Support for wideband sub-6GHz 5G. Some antennas in this series support all sub-6GHz LTE and 5G cellular frequencies. Other, visually identical models, support traditional LTE frequencies only. Potential customers should carefully review the model numbers and specifications before purchase.
- Mounting (adhesive or wall mount)
- Color
Depending on the variant, the antennas can combine cellular, GPS, and Wi-Fi antennas like other combination antennas.
The Guardian line includes the following models of most interest to the RV, cruising and nomadic community:
Wideband cellular antennas which include sub-6GHz 5G support and LTE/5G 600MHz (Band 71/n71) support:
- MA963: 4x Cellular (MIMO)
- MA952: 2x Cellular (MIMO), 2x Wi-Fi (MIMO), and 1x GNSS/GPS
- MA9908: 4x Cellular (MIMO),3x Wi-Fi (MIMO), and 1x GNSS/GPS
- MA9909: 8x Cellular (Two 4x4 MIMO), 1 GNSS/GPS
4G/LTE cellular antennas (No Band 71 or sub-6GHz 5G support):
- MA961: 2x Cellular (MIMO), 2x Wi-Fi (MIMO)
- MA950: 2x Cellular (MIMO), 2x Wi-Fi (MIMO), 1x GPS/GNSS
All available models can be viewed and compared here on the Taoglas website.
Carefully consider the models before purchasing to know exactly what you are getting.
Additionally, customized options, such as cabling and connectors, may be available for this line of antennas depending on the vendor.
Product Variations
Wideband sub-6GHz 4G & 4G/LTE Models
Specifications (Wideband sub-6GHz 5G & 4G/LTE Models)
- Model: Guardian (MA952, MA963, MA9908, MA9909)
- Form Factor: Panel
- Direction: Omnidirectional
- # of Antenna Elements: Up to 8x Cellular and 3x Wi-Fi plus GPS/GNSS
- Frequency Range: 600MHz - 6GHz
- Impedance: 50ohm
- Cable Type & Length: RG-174, 3.3'
- Connectors: SMA-Male
- Dimensions (H x L x W): Varies - all are 0.65" thick - length and width dimensions depend on configuration.
- Weight: Varies
- Mounting Options: Adhesive or wall
- Outdoor Rated: Yes
- Frequency Range/Gain: Varies by frequency - see spec sheets
- Special Features/Notes: Not Specified
- Retail Price: $100-$200
4G/LTE Models
Specifications (4G/LTE Models)
- Model: Guardian (MA950, MA961)
- Form Factor: Panel
- Direction: Omnidirectional
- # of Antenna Elements: Up to 2x Cellular and 2x Wi-Fi plus GPS/GNSS
- Frequency Range: 698 - 3600MHz
- Impedance: 50ohm
- Cable Type & Length: RG-174, 3.3'
- Connector: SMA-Male
- Dimensions (H x L x W): Varies - all are 0.65" thick - length and width dimensions depend on configuration.
- Weight: Varies
- Mounting Options: Adhesive or wall
- Outdoor Rated: Yes
- Frequency Range/Gain: Varies by frequency - see spec sheets
- Special Features/Notes: Not Specified
- Retail Price: $80-$150
News, Videos, & Status
- We are not currently testing the Taoglas Guardian series.
Alternatives to Consider
For other popular cellular antennas on the market we are tracking - here are our featured options:
This Review Contains Additional Member Exclusive Content!
We are Honored to be Member Funded! No ads, no sponsors, no selling (but may contain affiliate links)
Our members fund our in-depth independent reviews.
This entry may contain additional member exclusive content such as testing notes, field testing data, user interface tours, comparisons to alternatives, analysis, tips, videos and discounts.
Members also get interactive guidance, alerts, classroom and more.
Are you a member? Please log in above to access your member exclusive content!
Member Exclusive Content Below
- Thoughts & Analysis - Favorite Features & Potential Downsides
Purchasing Options
Purchasing Links & Disclaimer
We don't sell stuff, we are primarily member funded. Some links below may be affiliate links (see our disclaimer), which also helps fund MIRC.
The vendors displayed below provide larger discounts to our MIAs that we have negotiated instead of displaying affiliate links while they are logged in.
MIA Discounts - Learn & Save!
Our Mobile Internet Aficionados (MIA) get special discounts from the below vendors. Members please check for discount codes before ordering. With savings up to 11% off, you could save more than your membership cost!
This series of antennas are available in several configurations and custom orders may be possible - ask your vendor. Specific configurations may be difficult to find in stock.
Shop carefully and know exactly what you are looking for - the model numbers are very similar for several variants.
- Mouser Electronics
- To find the antennas listed above, search for them by model # on Mouser's website.
Cellular antennas can be a vital part of your signal enhancing strategy to get a better signal, and thus better cellular data performance. They come in many shapes, sizes and varieties.
They can be used directly connected to your mobile hotspots or cellular embedded routers, or they might connect to your cellular booster. They come in omni-directional vs directional, single vs MIMO, and might support different frequency bands. They come in combination antennas with Wi-Fi and GPS.
But most importantly, is your installation options on your RV or boat.
So before choosing an antenna, be sure to understand all of these variables - and keep in mind that there likely isn't a single 'one size fits all' solution here. You may need to make compromises, or even have speciality antennas for challenging signal areas.
