Waveform is a US-based company that sells cellular-related equipment and also manufactures some of its own, including cellular antennas.
Most of Waveform's antennas are designed for stationary/fixed location use, but some products could be suitable for use in a mobile setup.
Here are the primary antennas of interest to mobile users:
- QuadMini - A portable 4x4 MIMO omnidirectional panel antenna with multiple mounting options.**TOP PICK**
- QuadPro - A 4x4 MIMO high-gain directional panel antenna suitable for exterior use.
Product Specifications

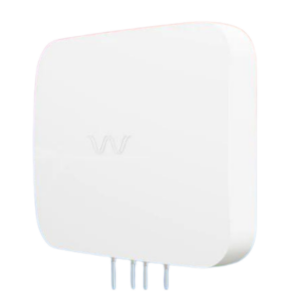

QuadMini
Specifications
- Model: QuadMini
- Form Factor: Panel
- Direction: Omnidirectional
- # of Antenna Elements: 4x Cellular
- Frequency Range: 600 MHz - 6 GHz
- Impedance: 50 ohm
- Cable Type & Length: Optional UltraFlex-Quad Cable, available in different lengths
- Connector: SMA Male
- Dimensions (H x L x W): 7.1 x 12.8 x 0.6 inches
- Weight: 1.41 lbs
- Mounting: Pole, wall, suction cup, or desktop
- Outdoor Rated: Yes, IP65
- Frequency / Gain:
- 600-900 MHz: 2.5 dBi
- 1,700-2,700 MHz: 5.3 dBi
- 3,500-4,200 MHz: 5.4 dBi
- 5,000-6,000 MHz: 5.8 dBi
- Special Features/ Notes: Not Specified
- Retail Price:
- Antenna Only: $119
- Kit with cables: $219-$299

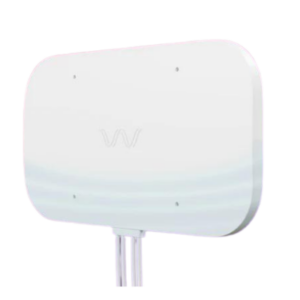

QuadPro
Specifications
- Model: QuadPro
- Form Factor: Panel
- Direction: Directional
- # of Antenna Elements: 4x Cellular
- Frequency Range: 600 MHz - 6 GHz
- Impedance: 50 ohm
- Cable Type & Length: Optional UltraFlex-Quad Cable, available in different lengths
- Connector: SMA Male
- Dimensions (H x L x W): 12.1 x 15.2 x 2.6 inches
- Weight: 5 lbs
- Mounting: Pole or wall
- Outdoor Rated: Yes, IP65
- Frequency / Gain:
- 600-900 MHz: 5.5 dBi
- 1,700-2,700 MHz: 7.7 dBi
- 3,500-4,200 MHz: 6.8 dBi
- 5,000-6,000 MHz: 7.9 dBi
- Special Features/ Notes: Not Specified
- Retail Price:
- Antenna Only: $249
- Kit with cables: $349-$489
News, Videos, & Status
Waveform sent us a QuadMini antenna for evaluation and we tested it along with the Parsec Akita.
Our members will have access to our full review below.
Testing Forum Thread: 4x4 QuadMini Antenna from Waveform (Cellular Antennas)
Related Videos:
Related News Articles:
Alternatives to Consider
For other popular cellular antennas on the market we are tracking - here are our featured options:
This Review Contains Additional Member Exclusive Content!
We are Honored to be Member Funded! No ads, no sponsors, no selling (but may contain affiliate links)
Our members fund our in-depth independent reviews.
This entry may contain additional member exclusive content such as testing notes, field testing data, user interface tours, comparisons to alternatives, analysis, tips, videos and discounts.
Members also get interactive guidance, alerts, classroom and more.
Are you a member? Please log in above to access your member exclusive content!
Member Exclusive Content Below
- Thoughts & Analysis - Favorite Features & Potential Downsides
- Deep Dive
- Hardware Notes with Inside Look Video
- Hands on Testing Notes
- Alternatives
- Summary
- Waveform QuadMini Summary
Purchasing Options
Purchasing Links & Disclaimer
We don't sell stuff, we are primarily member funded. Some links below may be affiliate links (see our disclaimer), which also helps fund MIRC.
The vendors displayed below provide larger discounts to our MIAs that we have negotiated instead of displaying affiliate links while they are logged in.
MIA Discounts - Learn & Save!
Our Mobile Internet Aficionados (MIA) get special discounts from the below vendors. Members please check for discount codes before ordering. With savings up to 11% off, you could save more than your membership cost!
Affiliate vendor links - using these links helps support MIRC's mission (MIAs, please log in to get special discounts):
Waveform:
Amazon: (affiliate links)
Cellular antennas can be a vital part of your signal enhancing strategy to get a better signal, and thus better cellular data performance. They come in many shapes, sizes and varieties.
They can be used directly connected to your mobile hotspots or cellular embedded routers, or they might connect to your cellular booster. They come in omni-directional vs directional, single vs MIMO, and might support different frequency bands. They come in combination antennas with Wi-Fi and GPS.
But most importantly, is your installation options on your RV or boat.
So before choosing an antenna, be sure to understand all of these variables - and keep in mind that there likely isn't a single 'one size fits all' solution here. You may need to make compromises, or even have speciality antennas for challenging signal areas.
We recommend starting with our Guide to Selecting Antennas, and then moving on to our other guides addressing related topics:
